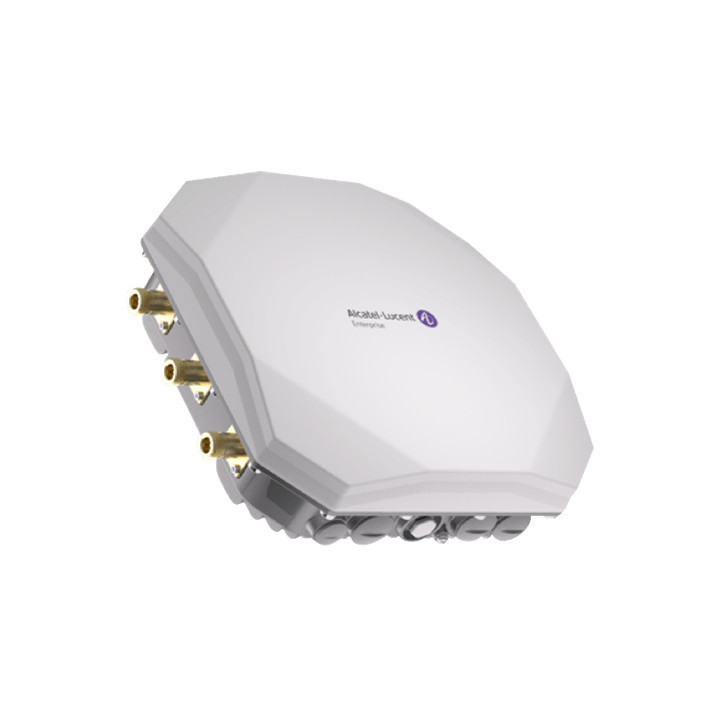

Stellar AP1362 Access Point | Wi-Fi 6

The Stellar AP1362 access point is part of the Alcatel-Lucent Enterprise AP1360 outdoor range and uses Wi-Fi 6 (802.11ax) technology. This is the external antenna model (N-type connectors), so coverage can be adapted to site constraints.

According to the Stellar product matrix, the AP1362 model provides 2.4 GHz in 2×2 MIMO and 5 GHz in 4×4 MIMO.

The AP1360 series datasheet states that the outdoor models in this series are designed to withstand harsh conditions (IP67 enclosure, surge protection, wide temperature range) and deliver an aggregate throughput of about 3 Gb/s (≈ 2.4 Gb/s on 5 GHz + 574 Mb/s on 2.4 GHz) in their high-end configuration.

As a member of this series, the AP1362 model therefore inherits the outdoor robustness and network capacity characteristics of the series.

🔧 Key specifications

• Wi-Fi standard: 802.11ax (Wi-Fi 6)

• Radios:
  • 5 GHz 4×4 MIMO
  • 2.4 GHz 2×2 MIMO

• Antennas: external (N-type connectors)

• Aggregate throughput (AP1360 series): ~3 Gb/s (≈ 2.4 Gb/s on 5 GHz + ~ 574 Mb/s on 2.4 GHz)

• Environment: outdoor use with robustness (suitable enclosure)

• Resilience: surge protection, harsh weather conditions

• Network interfaces / connectivity: models in the AP1360 series can support multi-gig uplinks and an SFP link for long-distance backhaul, and offer Ethernet IoT link options.

• Target use: outdoor areas requiring reliable coverage with moderate capacity, in demanding conditions
